Beskrivning

Typ av produkt

Kamomkopplare

Kapslings-/knappfärg

Grå

Funktioner

låsande

Aktiveringstyp

Vred

Brytvinkel

1 x 90 °

Utförande

Av/På Strömbrytare montering

Monteringssätt

Inbyggnad

Tryck-motiv

OFF/ON

Antal poler

3

Anslutning

Skruv

Gängstorlek

M3.5

Växelström (max)

20

Max. effekt

6.5

Min. temperatur

-25

Max. temperatur

+50

Längd

48

Bredd

48

Skyddsklass

IP65

Innehåll

1

Typ

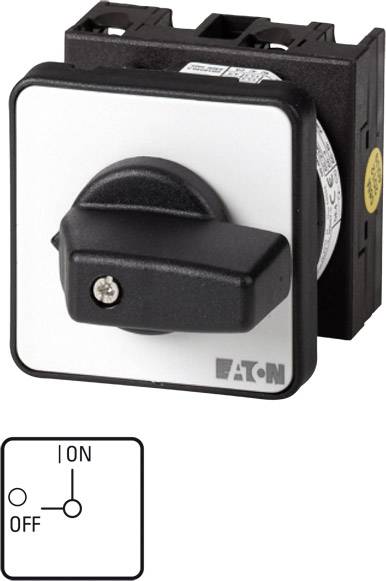

T0-2-1/E

Mått.

(L x B) 48 mm x 48 mm

Tillverkarfärg

Flerfärgad

Bryteffekt

6,5

Brytström

20

Typ

T0-2-1/E

Poler

3

Anslutningstyp

M3,5

Temperatur

-25 – +50

Width

48

Height

48

Depth

86

Rated operation power at AC-3, 400 V

5.5

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Rated permanent current Iu

20

Number of poles

3

Rated operating voltage

690-690

Conditioned rated short-circuit current Iq

6

Degree of protection (IP), front side

IP65

Number of auxiliary contacts as change-over contact

0

Number of switches

1

Interlockable

FALSE

Motor drive integrated

FALSE

Type of electrical connection of main circuit

Screw connection

Version as emergency stop installation

FALSE

Type of control element

Short rotary handle

Version as main switch

FALSE

Version as safety switch

FALSE

Version as maintenance-/service switch

FALSE

Rated operation power at AC-23, 400 V

5.5

Rated short-time withstand current lcw

0.32

Colour control element

Black

Suitable for floor mounting

FALSE

Suitable for front mounting 4-hole

TRUE

Suitable for front mounting centre

FALSE

Suitable for distribution board installation

FALSE

Suitable for intermediate mounting

FALSE

Max. rated operation voltage Ue AC

690

Motor drive optional

FALSE

Voltage release optional

FALSE

Device construction

Built-in device fixed built-in technique

Rated permanent current at AC-21, 400 V

20

Switching power at 400 V

5.5

Version as reversing switch

FALSE

Degree of protection (NEMA)

12

With pre-assembled cabling

FALSE
