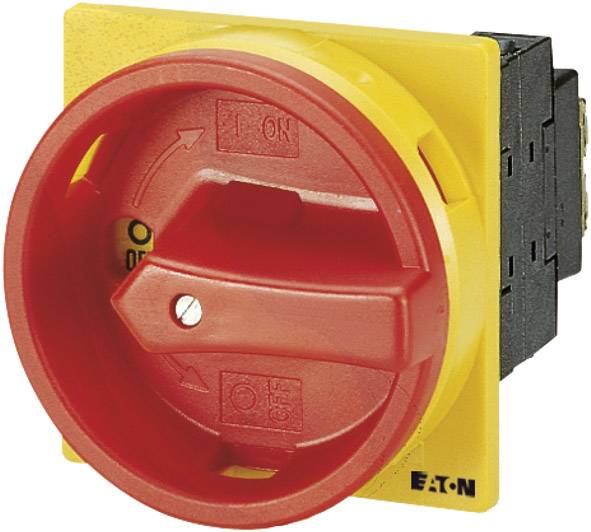

Beskrivning
- Typ av produkt
- Kamomkopplare
- Switch/tryckknapp – specifikationer
- avspärrbar
- Kapslings-/knappfärg
- Gul
- Funktioner
- låsande
- Aktiveringstyp
- Nöd Vridströmbrytare
- Brytvinkel
- 1 x 90 °
- Utförande
- Låsbar i 0-läget
- Monteringssätt
- Inbyggnad
- Tryck-motiv
- OFF/ON
- Antal poler
- 2
- Anslutning
- Skruv
- Gängstorlek
- M4
- Växelspänning
- 690
- Växelström (max)
- 32
- Max. effekt
- 13
- Min. temperatur
- -25
- Max. temperatur
- +50
- Längd
- 65
- Bredd
- 65
- Skyddsklass
- IP55
- Innehåll
- 1
- Typ
- T3-1-102/EA/SVB
- Mått.
- (L x B) 65 mm x 65 mm
- Bryteffekt
- 13
- Brytspänning
- 690
- Brytström
- 32
- Typ
- T3-1 -102/EA/SVB
- Poler
- 2
- Anslutningstyp
- M4
- Temperatur
- -25 – +50
- Width
- 65
- Height
- 74
- Depth
- 104
- Rated operation power at AC-3, 400 V
- 11
- Number of auxiliary contacts as normally open contact
- 0
- Number of auxiliary contacts as normally closed contact
- 0
- Rated permanent current Iu
- 32
- Number of poles
- 2
- Rated operating voltage
- 690-690
- Conditioned rated short-circuit current Iq
- 1
- Degree of protection (IP), front side
- IP65
- Number of auxiliary contacts as change-over contact
- 0
- Number of switches
- 1
- Interlockable
- TRUE
- Motor drive integrated
- FALSE
- Type of electrical connection of main circuit
- Screw connection
- Version as emergency stop installation
- TRUE
- Type of control element
- Door coupling rotary drive
- Version as main switch
- TRUE
- Version as safety switch
- FALSE
- Version as maintenance-/service switch
- TRUE
- Rated operation power at AC-23, 400 V
- 15
- Rated short-time withstand current lcw
- 0.65
- Colour control element
- Red
- Suitable for floor mounting
- FALSE
- Suitable for front mounting 4-hole
- FALSE
- Suitable for front mounting centre
- TRUE
- Suitable for distribution board installation
- FALSE
- Suitable for intermediate mounting
- FALSE
- Max. rated operation voltage Ue AC
- 690
- Motor drive optional
- FALSE
- Voltage release optional
- FALSE
- Device construction
- Built-in device fixed built-in technique
- Rated permanent current at AC-21, 400 V
- 32
- Switching power at 400 V
- 15
- Version as reversing switch
- FALSE
- Degree of protection (NEMA)
- 12
- With pre-assembled cabling
- FALSE
