Beskrivning

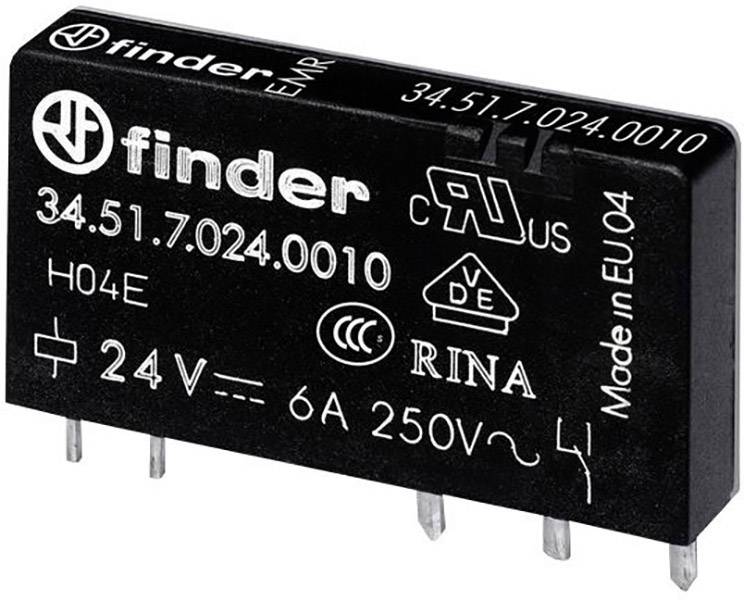

Extremt smalt kontakt-/print-relä – endast 5 mm brett. Nätrelä med DC-styrning. Säker separering enligt VDE 0106 T/101.
Extremt smalt kontakt-/print-relä – endast 5 mm brett. Nätrelä med DC-styrning. Säker separering enligt VDE 0106 T/101.
- Typ av produkt
- Kretskort-relä
- Typ
- 34.51.7.024.0010
- Nominell spänning spole
- 24
- Driftspänning (min.)
- 16.8
- Utlösningsspänning (max.)
- 36
- Kontrolläge
- monostabil, 1 spole
- Motstånd (spole)
- 3350
- Kontakttyp
- 1 switch
- Kontaktmaterial
- AgNi
- Växelspänning (max.)
- 400
- Växelström (max)
- 6
- Max. bryteffekt
- 1500
- Anslutning
- Lödpin
- Min. temperatur
- -40
- Max. temperatur
- +85
- Längd
- 28
- Bredd
- 5
- Höjd
- 15
- Mått.
- (L x B x H) 28 x 5 x 15 mm
- Innehåll
- 1
- RoHS-godkänd
- Ja
- Nominal current
- 6
- Width
- 5
- Height
- 15
- Depth
- 28
- Max. starting current
- 10
- With detachable clamps
- FALSE
- Drive, polarization
- Polarity free
- Drive, switching attitude
- Mono stable
- With forced-guided contacts
- FALSE
- Type of switch contact
- Single contact
- Complete with socket
- FALSE
- Type of electric connection
- PCB connection
- Rated control supply voltage DC
- 24-24
- Voltage type (operating voltage)
- DC
- With LED indication
- FALSE
- Operating voltage DC
- 16.8-36
- Voltage type for actuating
- DC
- Number of contacts as normally closed contact
- 0
- Number of contacts as normally open contact
- 0
- Number of contacts as change-over contact
- 1
