Beskrivning
Säker separering mellan spole och kontakter enligt EN 50178, EN 60204, EN 60335.
Säker separering mellan spole och kontakter enligt EN 50178, EN 60204, EN 60335.

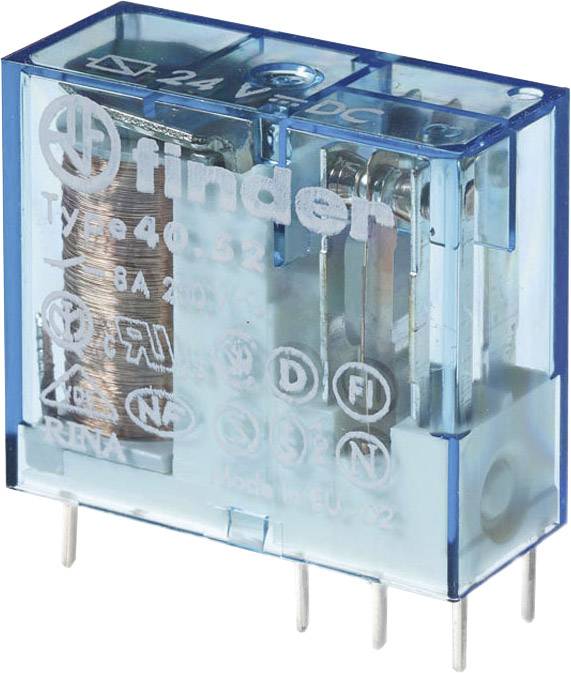

- Typ av produkt
- Kretskort-relä
- Typ
- 40.52.7.024.0000
- Nominell spänning spole
- 24
- Driftspänning (min.)
- 17.5
- Utlösningsspänning (max.)
- 36
- Kontrolläge
- monostabil, 1 spole
- Motstånd (spole)
- 1150
- Kontakttyp
- 2 switch
- Kontaktmaterial
- AgNi
- Växelspänning (max.)
- 400
- Växelström (max)
- 8
- Max. bryteffekt
- 2000
- Luft/krypsträcka (spole/kontakter)
- 8
- Anslutning
- Lödpin
- Min. temperatur
- -40
- Max. temperatur
- +85
- Längd
- 29
- Bredd
- 12.4
- Höjd
- 25
- Mått.
- (L x B x H) 29 x 12.4 x 25 mm
- Innehåll
- 1
- RoHS-godkänd
- Ja
- Nominal current
- 8
- Width
- 12.4
- Height
- 25
- Depth
- 29
- Max. starting current
- 15
- With detachable clamps
- FALSE
- Drive, polarization
- Polarity free
- Drive, switching attitude
- Mono stable
- With forced-guided contacts
- FALSE
- Type of switch contact
- Single contact
- Complete with socket
- FALSE
- Type of electric connection
- PCB connection
- Rated control supply voltage DC
- 24-24
- Voltage type (operating voltage)
- DC
- With LED indication
- FALSE
- Operating voltage DC
- 17.5-36
- Voltage type for actuating
- DC
- Number of contacts as normally closed contact
- 0
- Number of contacts as normally open contact
- 0
- Number of contacts as change-over contact
- 2
