Beskrivning

Typ av produkt

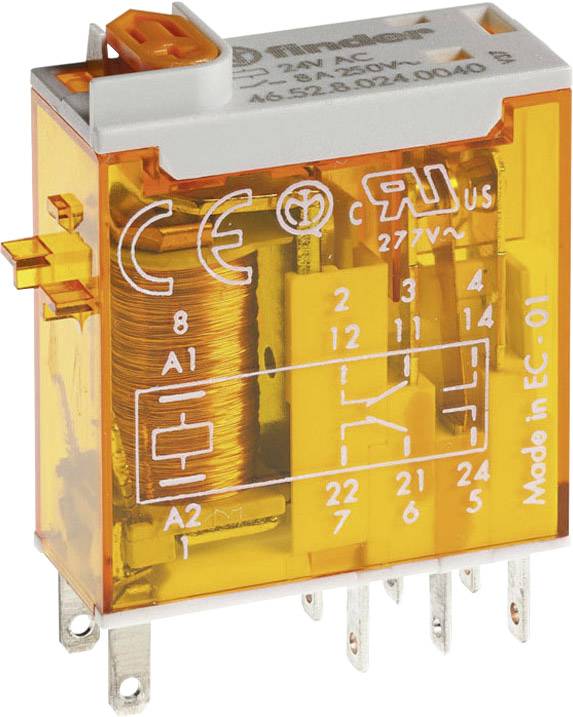

Insticks-relä

Typ

46.52.8.230.0040

Nominell spänning spole

230

Driftspänning (min.)

184

Utlösningsspänning (max.)

253

Kontakttyp

2 switch

Kontaktmaterial

AgNi

Växelspänning (max.)

440

Växelström (max)

8

Max. bryteffekt

2000

Anslutning

Flatstift 2.5 mm

Svarstid

10

Falltid

3

Min. temperatur

-40

Max. temperatur

+70

Vikt

0.0200

Längd

29

Bredd

12.4

Höjd

32.8

Mått.

(L x B x H) 29 x 12.4 x 32.8 mm

Innehåll

1

RoHS-godkänd

Ja

Nominal current

8

Width

12.4

Height

32.8

Depth

29

Max. starting current

15

With detachable clamps

FALSE

Drive, polarization

Polarity free

Drive, switching attitude

Mono stable

With forced-guided contacts

FALSE

Type of switch contact

Single contact

Complete with socket

FALSE

Type of electric connection

Plug-in connection

Rated control supply voltage AC 50 Hz

230-230

Rated control supply voltage AC 60 Hz

230-230

Voltage type (operating voltage)

AC

With LED indication

FALSE

Operating voltage AC 50 Hz

184-253

Operating voltage AC 60 Hz

184-253

Voltage type for actuating

AC

Number of contacts as normally closed contact

0

Number of contacts as normally open contact

0

Number of contacts as change-over contact

2
