Beskrivning
Kontrollknapp.
Kontrollknapp.

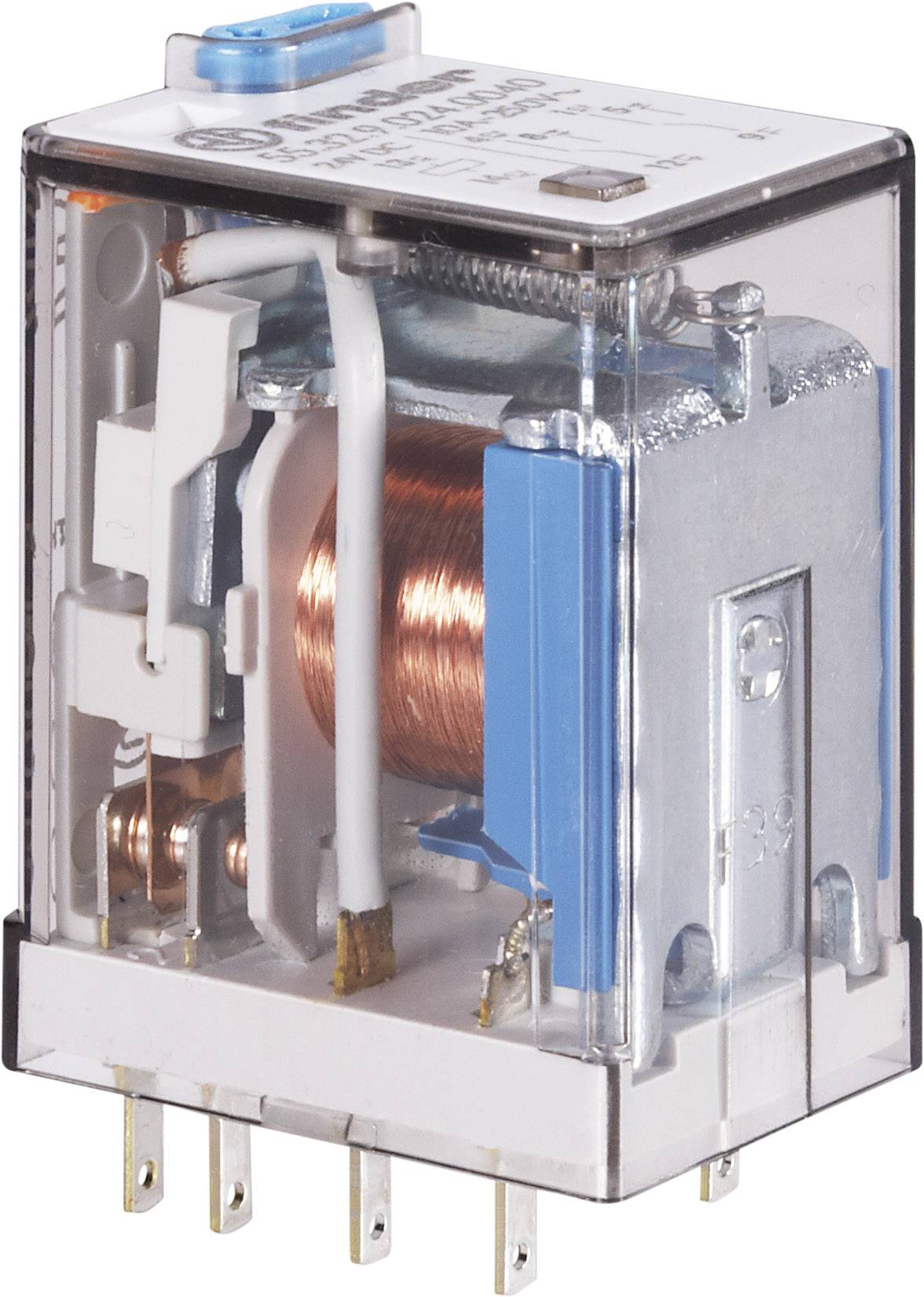

- Typ av produkt
- Insticks-relä
- Typ
- 55.33.9.024.0010
- Nominell spänning spole
- 24
- Driftspänning (min.)
- 19.2
- Utlösningsspänning (max.)
- 26.4
- Kontrolläge
- monostabil, 1 spole
- Motstånd (spole)
- 600
- Kontakttyp
- 3 switch
- Kontaktmaterial
- AgNi
- Växelspänning (max.)
- 400
- Växelström (max)
- 10
- Max. bryteffekt
- 2500
- Anslutning
- Flatstift 2 mm
- funktioner
- med testknapp, låsbar
- Min. temperatur
- -40
- Max. temperatur
- +85
- Längd
- 27.7
- Bredd
- 20.7
- Höjd
- 37.2
- Mått.
- (L x B x H) 27.7 x 20.7 x 37.2 mm
- Innehåll
- 1
- RoHS-godkänd
- Ja
- Typ
- 55.33.9.024.0010
- Nominal current
- 10
- Width
- 20.7
- Height
- 37.2
- Depth
- 27.7
- Max. starting current
- 20
- With detachable clamps
- FALSE
- Drive, polarization
- Polarity free
- Drive, switching attitude
- Mono stable
- With forced-guided contacts
- FALSE
- Type of switch contact
- Single contact
- Complete with socket
- FALSE
- Type of electric connection
- Plug-in connection
- Rated control supply voltage DC
- 24-24
- Voltage type (operating voltage)
- DC
- With LED indication
- FALSE
- Operating voltage DC
- 19.2-26.4
- Voltage type for actuating
- DC
- Number of contacts as normally closed contact
- 0
- Number of contacts as normally open contact
- 0
- Number of contacts as change-over contact
- 3
