Beskrivning

Typ av produkt

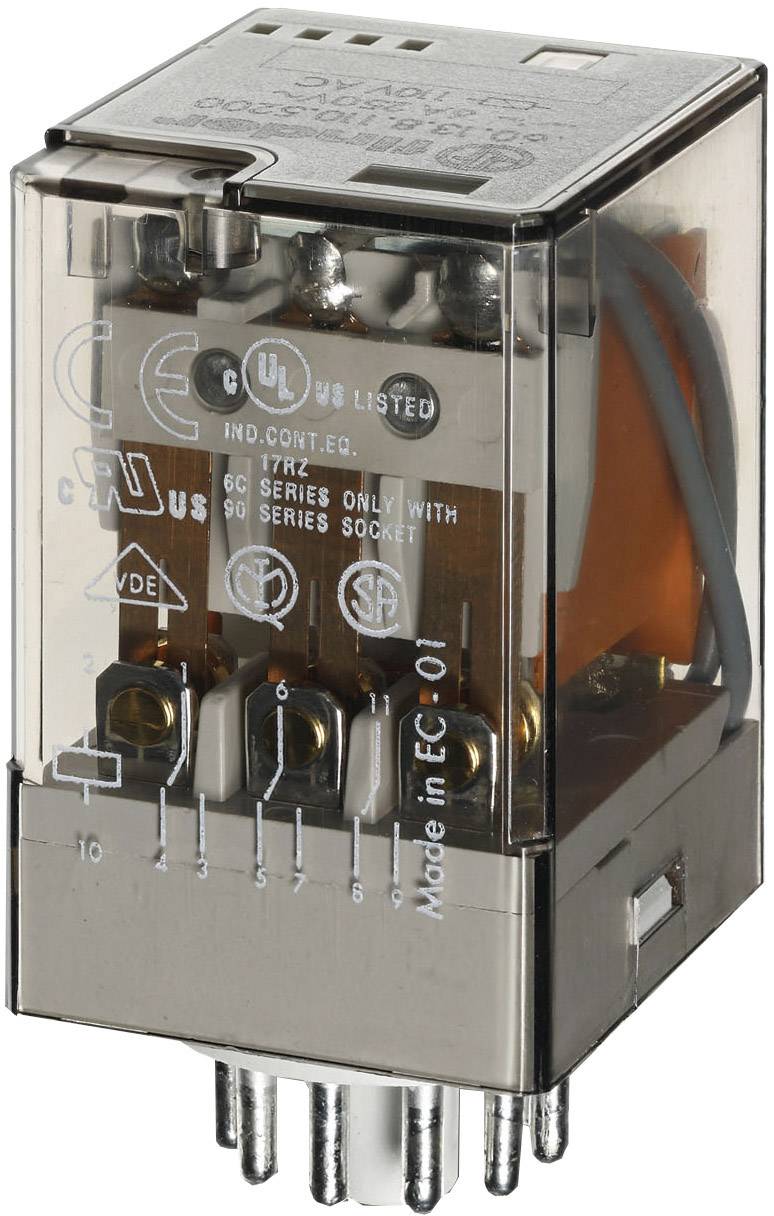

Insticks-relä

Typ

60.13.8.230.0040

Nominell spänning spole

230

Driftspänning (min.)

184

Utlösningsspänning (max.)

253

Kontrolläge

monostabil, 1 spole

Motstånd (spole)

7250

Kontakttyp

3 switch

Kontaktmaterial

AgNi

Växelspänning (max.)

400

Växelström (max)

10

Max. bryteffekt

2500

Anslutning

Kontaktanslutning, 11-polig

funktioner

med testknapp, låsbar

Min. temperatur

-40

Max. temperatur

+70

Längd

36.4

Bredd

32.5

Höjd

54.2

Mått.

(L x B x H) 36.4 x 32.5 x 54.2 mm

Innehåll

1

RoHS-godkänd

Ja

Nominal current

10

Width

32.5

Height

54.2

Depth

36.4

Max. starting current

20

With detachable clamps

FALSE

Drive, polarization

Polarity free

Drive, switching attitude

Mono stable

With forced-guided contacts

FALSE

Type of switch contact

Single contact

Complete with socket

FALSE

Type of electric connection

Plug-in connection

Rated control supply voltage AC 50 Hz

230-230

Rated control supply voltage AC 60 Hz

230-230

Voltage type (operating voltage)

AC

With LED indication

FALSE

Operating voltage AC 50 Hz

184-253

Operating voltage AC 60 Hz

184-253

Voltage type for actuating

AC

Number of contacts as normally closed contact

0

Number of contacts as normally open contact

0

Number of contacts as change-over contact

3
