Beskrivning

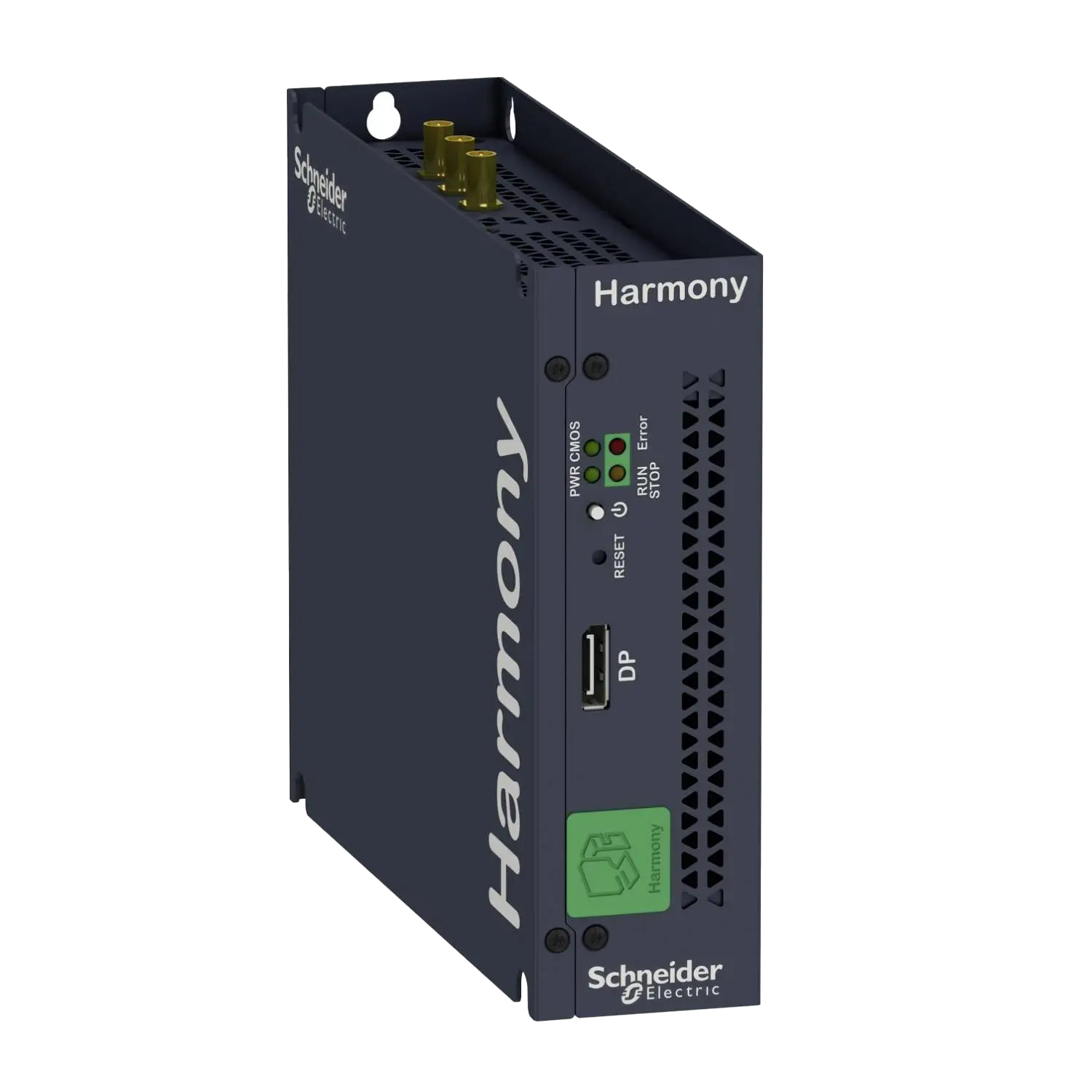

IIot Edge Box smart eMMC DC Windows TPM

IIot Edge Box smart eMMC DC Windows TPM

Typ av produkt

Industri PC

Processor

HDD

0

Hårddisk 1

0

Språk/layout

Inget tangentbord ingår i leveransen

Width

187

Height

150

Depth

46

Suitable for safety functions

FALSE

With hard disc

FALSE

Voltage type (supply voltage)

AC/DC

Supporting protocol for LON

FALSE

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces serial TTY

1

Number of HW-interfaces USB

2

Number of HW-interfaces parallel

0

Number of HW-interfaces other

0

Suitable for operating system Windows 9x

FALSE

Suitable for operating system Windows 2000

FALSE

Suitable for operating system Windows XP

FALSE

Suitable for operating system Windows ME

FALSE

Suitable for operating system Windows CE

FALSE

Suitable for operating system Linux

TRUE

Suitable for other operating system

TRUE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for Modbus

TRUE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for SUCONET

FALSE

Supporting protocol for other bus systems

FALSE

Processor type

Intel Atom

Max. main memory

4000

With floppy disc drive

FALSE

With other storage media

TRUE

With graphic card

FALSE

With sound card

FALSE

Number of free AGP-slots

0

Number of free PCI-slots

1

Number of free ISA-slots

0

Number of free PCMCIA-slots

0

Number of other free slots

0

Suitable for rail mounting

FALSE

Construction type housing

Box

Memory capacity hard disc

0

Degree of protection (IP)

IP40

Supporting protocol for SERCOS

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Number of interfaces PROFINET

0

Number of HW-interfaces wireless

0

Front built-in possible

FALSE

Rack-assembly possible

FALSE

Wall mounting/direct mounting

TRUE

Suitable for operating system Windows 2003 Server

FALSE

Suitable for operating system Windows Vista

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

IO link master

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for SafetyBUS p

FALSE

Preinstalled operating system

Windows 10

Radio standard GPRS

FALSE

Radio standard GSM

FALSE

Mobile communications standard 3G (UMTS)

FALSE

Suitable for operating system Windows 7

FALSE

Suitable for operating system Windows 8

FALSE

Processor clock rate

1.8

Number of storage media bays

1

Degree of protection (NEMA)

Other

With optical drive

FALSE
