Beskrivning

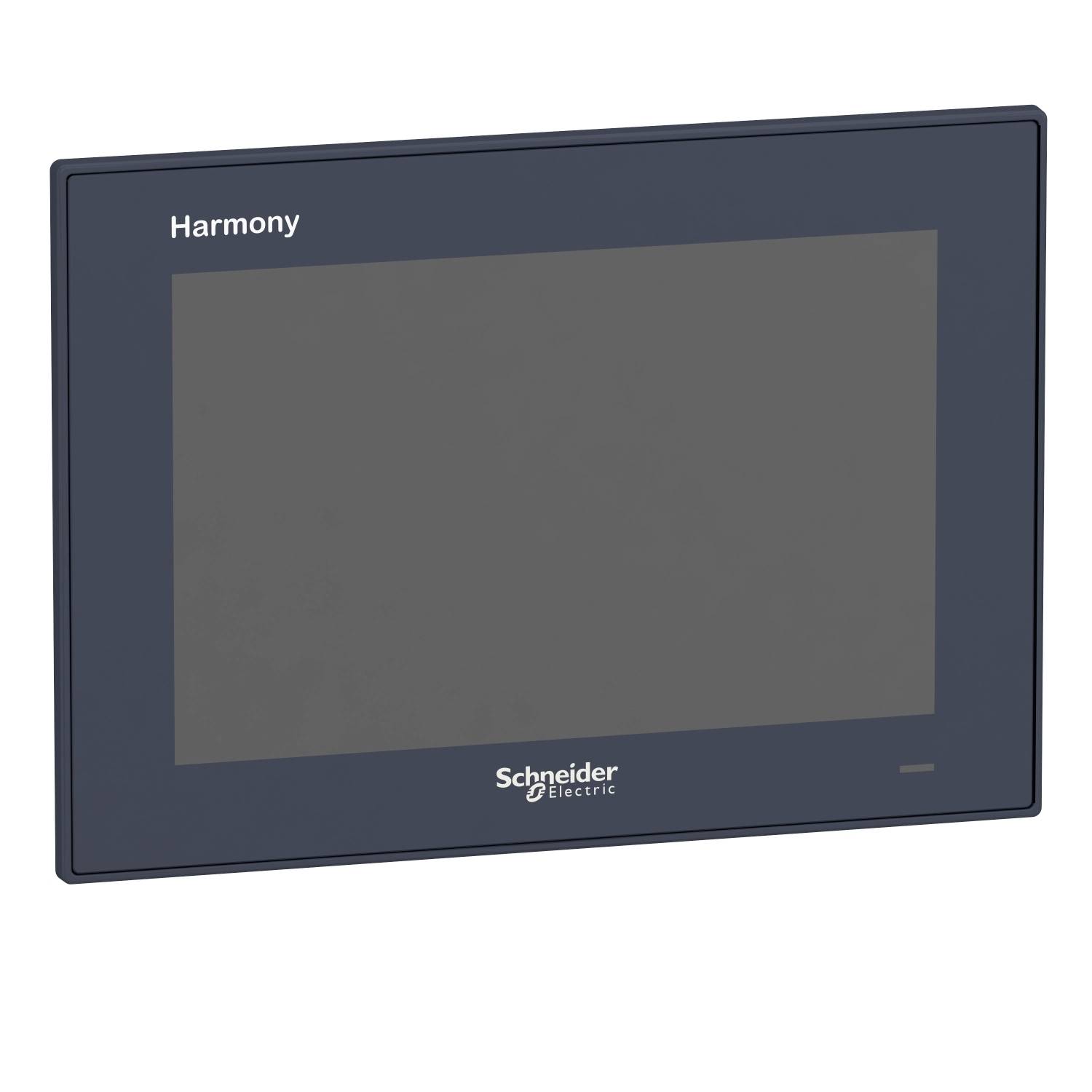

Magelis HMIPSO Optimized 10 tums pekskärm (Intel Atom E3827 Dual Core-processor). Magelis s s-panel basenhet. Operativsystem -, programvara -, minne -, minne DDR3 4 GB, kan inte utökas. TFT-bildskärm med 1280 x 800 pixel upplösning och multi touch. Kylning med passiv kylkropp. Vijeo XD RT kan användas temporärt utan aktivering (installation av Vijeo XD Build Time-DVD) och obegränsat förlängas genom att köpa licensen HMITMMCZLSPMZZ. AC-nätenhet med extern AC/DC-adapter HMIYPSPMAC1.
Magelis HMIPSO Optimized 10 tums pekskärm (Intel Atom E3827 Dual Core-processor). Magelis s s-panel basenhet. Operativsystem -, programvara -, minne -, minne DDR3 4 GB, kan inte utökas. TFT-bildskärm med 1280 x 800 pixel upplösning och multi touch. Kylning med passiv kylkropp. Vijeo XD RT kan användas temporärt utan aktivering (installation av Vijeo XD Build Time-DVD) och obegränsat förlängas genom att köpa licensen HMITMMCZLSPMZZ. AC-nätenhet med extern AC/DC-adapter HMIYPSPMAC1.
- Typ av produkt
- Industri PC
- Processor
- HDD
- 0
- Hårddisk 1
- 0
- Språk/layout
- Inget tangentbord ingår i leveransen
- Built-in depth
- 61.3
- Suitable for safety functions
- TRUE
- With hard disc
- FALSE
- With CD-RW drive
- FALSE
- Screen diagonal
- 10.1
- Voltage type (supply voltage)
- AC/DC
- Supporting protocol for LON
- FALSE
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-422
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces serial TTY
- 0
- Number of HW-interfaces USB
- 2
- Number of HW-interfaces parallel
- 0
- Number of HW-interfaces other
- 1
- Supporting protocol for ASI
- FALSE
- Supporting protocol for PROFIBUS
- FALSE
- Supporting protocol for CAN
- FALSE
- Supporting protocol for INTERBUS
- FALSE
- Supporting protocol for KNX
- FALSE
- Supporting protocol for Modbus
- FALSE
- Supporting protocol for Data-Highway
- FALSE
- Supporting protocol for DeviceNet
- FALSE
- Supporting protocol for SUCONET
- FALSE
- Supporting protocol for other bus systems
- TRUE
- Number of pixels, horizontal
- 1280
- Number of pixels, vertical
- 800
- With touch screen
- TRUE
- Degree of protection (IP), front side
- IP66
- Max. main memory
- 4000
- With CD-ROM drive
- FALSE
- With DVD-drive
- TRUE
- With DVD RW drive
- TRUE
- With floppy disc drive
- FALSE
- With other storage media
- FALSE
- Customer individual configuration
- TRUE
- Number of free AGP-slots
- 0
- Number of free PCI-slots
- 1
- Number of free ISA-slots
- 0
- Number of free PCMCIA-slots
- 0
- Number of HW-interfaces SCSI
- 0
- Number of HW-interfaces PS2
- 0
- Integrated keyboard
- FALSE
- Number of function buttons
- 0
- Mouse-cursor control integrated
- FALSE
- Width of the front
- 283.1
- Height of the front
- 202.3
- Suitable for rail mounting
- FALSE
- Supporting protocol for SERCOS
- FALSE
- Supporting protocol for INTERBUS-Safety
- FALSE
- Number of interfaces PROFINET
- 0
- Number of HW-interfaces wireless
- 0
- Front built-in possible
- TRUE
- Mounting type, gallows mounting
- FALSE
- Rack-assembly possible
- FALSE
- Mounting type, table foot
- FALSE
- Wall mounting/direct mounting
- TRUE
- Radio standard Bluetooth
- FALSE
- Radio standard WLAN 802.11
- FALSE
- IO link master
- FALSE
- Supporting protocol for AS-Interface Safety at Work
- FALSE
- Supporting protocol for DeviceNet Safety
- FALSE
- Supporting protocol for EtherNet/IP
- FALSE
- Supporting protocol for Foundation Fieldbus
- FALSE
- Supporting protocol for PROFINET CBA
- FALSE
- Supporting protocol for PROFINET IO
- FALSE
- Supporting protocol for PROFIsafe
- FALSE
- Supporting protocol for SafetyBUS p
- FALSE
- Preinstalled operating system
- None
- Type of display
- TFT
- Radio standard GPRS
- FALSE
- Radio standard GSM
- FALSE
- Mobile communications standard 3G (UMTS)
- FALSE
- Number of buttons with LED
- 0
- Number of system buttons
- 0
