Beskrivning

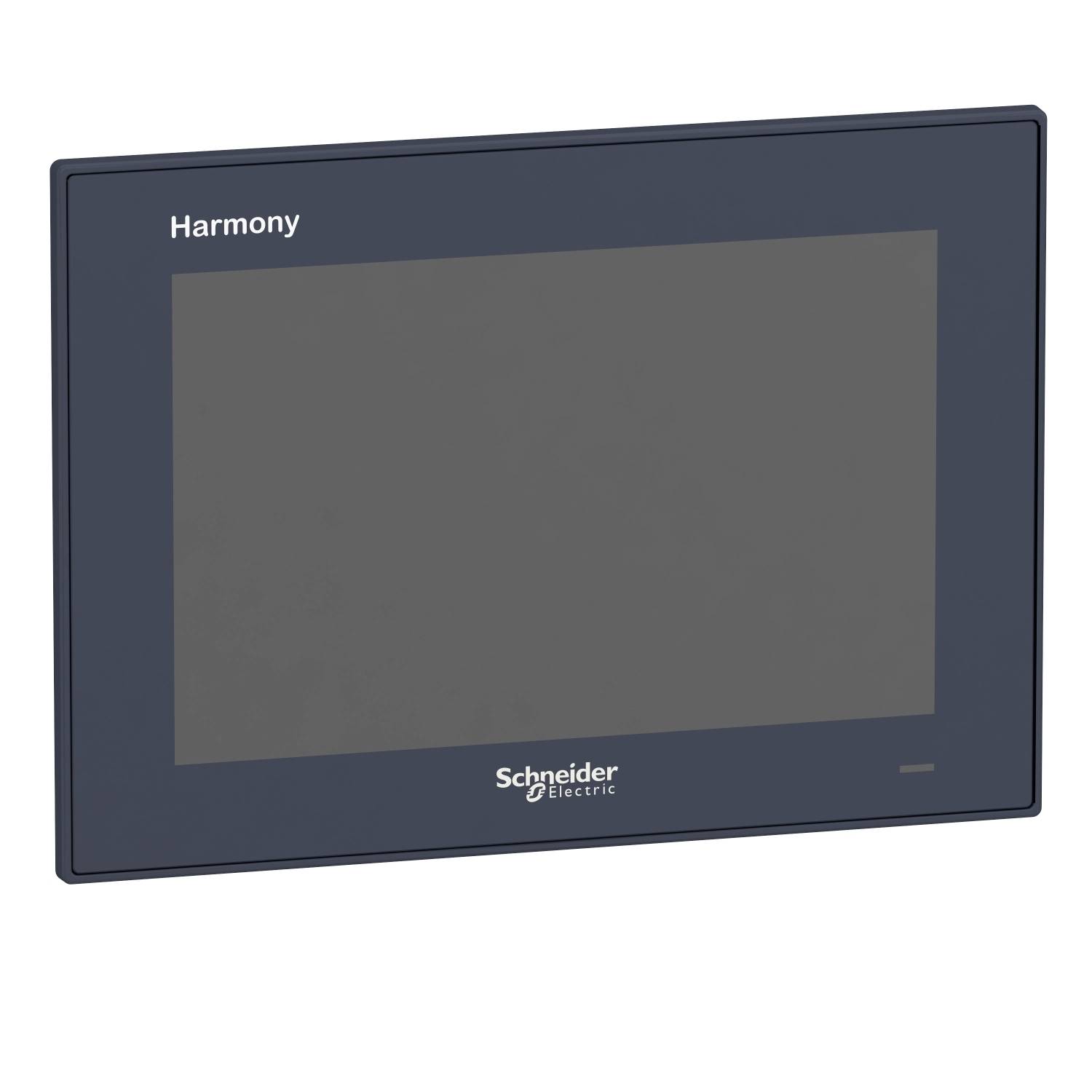

Magelis HMIPSO Optimized 10 tums pekskärm (Intel Atom E3827 Dual Core-processor). Magelis s-panel. Programvara Vijeo XD RTdemos, hårddisk HDD-hårddisk u 500 GB (monterad i kompletteringssats), minne DDR3 4 GB GB, kan inte utökas. TFT-bildskärm med 1280 x 800 pixel upplösning och multi touch. Kylning med passiv kylkropp. Vijeo XD RT kan användas temporärt utan aktivering (installation av Vijeo XD Build Time-DVD) och obegränsat förlängas genom att köpa licensen HMITMMCZLSPMZZ. AC-nätenhet med extern AC/DC-adapter HMIYPSPMAC1.

Magelis HMIPSO Optimized 10 tums pekskärm (Intel Atom E3827 Dual Core-processor). Magelis s-panel. Programvara Vijeo XD RTdemos, hårddisk HDD-hårddisk u 500 GB (monterad i kompletteringssats), minne DDR3 4 GB GB, kan inte utökas. TFT-bildskärm med 1280 x 800 pixel upplösning och multi touch. Kylning med passiv kylkropp. Vijeo XD RT kan användas temporärt utan aktivering (installation av Vijeo XD Build Time-DVD) och obegränsat förlängas genom att köpa licensen HMITMMCZLSPMZZ. AC-nätenhet med extern AC/DC-adapter HMIYPSPMAC1.

Typ av produkt

Industri PC

Processor

HDD

0

Hårddisk 1

0

Språk/layout

Inget tangentbord ingår i leveransen

Built-in depth

85.5

Suitable for safety functions

TRUE

With hard disc

TRUE

With CD-RW drive

FALSE

Screen diagonal

10.1

Voltage type (supply voltage)

AC/DC

Supporting protocol for LON

FALSE

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces serial TTY

0

Number of HW-interfaces USB

2

Number of HW-interfaces parallel

0

Number of HW-interfaces other

1

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for Modbus

FALSE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for SUCONET

FALSE

Supporting protocol for other bus systems

TRUE

Number of pixels, horizontal

1280

Number of pixels, vertical

800

With touch screen

TRUE

Degree of protection (IP), front side

IP66

Max. main memory

4000

With CD-ROM drive

FALSE

With DVD-drive

TRUE

With DVD RW drive

TRUE

With floppy disc drive

FALSE

With other storage media

FALSE

Customer individual configuration

TRUE

Number of free AGP-slots

0

Number of free PCI-slots

1

Number of free ISA-slots

0

Number of free PCMCIA-slots

0

Number of HW-interfaces SCSI

0

Number of HW-interfaces PS2

0

Integrated keyboard

FALSE

Number of function buttons

0

Mouse-cursor control integrated

FALSE

Width of the front

283.1

Height of the front

202.3

Suitable for rail mounting

FALSE

Supporting protocol for SERCOS

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Number of interfaces PROFINET

0

Number of HW-interfaces wireless

0

Front built-in possible

TRUE

Mounting type, gallows mounting

FALSE

Rack-assembly possible

FALSE

Mounting type, table foot

FALSE

Wall mounting/direct mounting

TRUE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

IO link master

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for SafetyBUS p

FALSE

Preinstalled operating system

Windows 8

Type of display

TFT

Radio standard GPRS

FALSE

Radio standard GSM

FALSE

Mobile communications standard 3G (UMTS)

FALSE

Number of buttons with LED

0

Number of system buttons

0
