Beskrivning

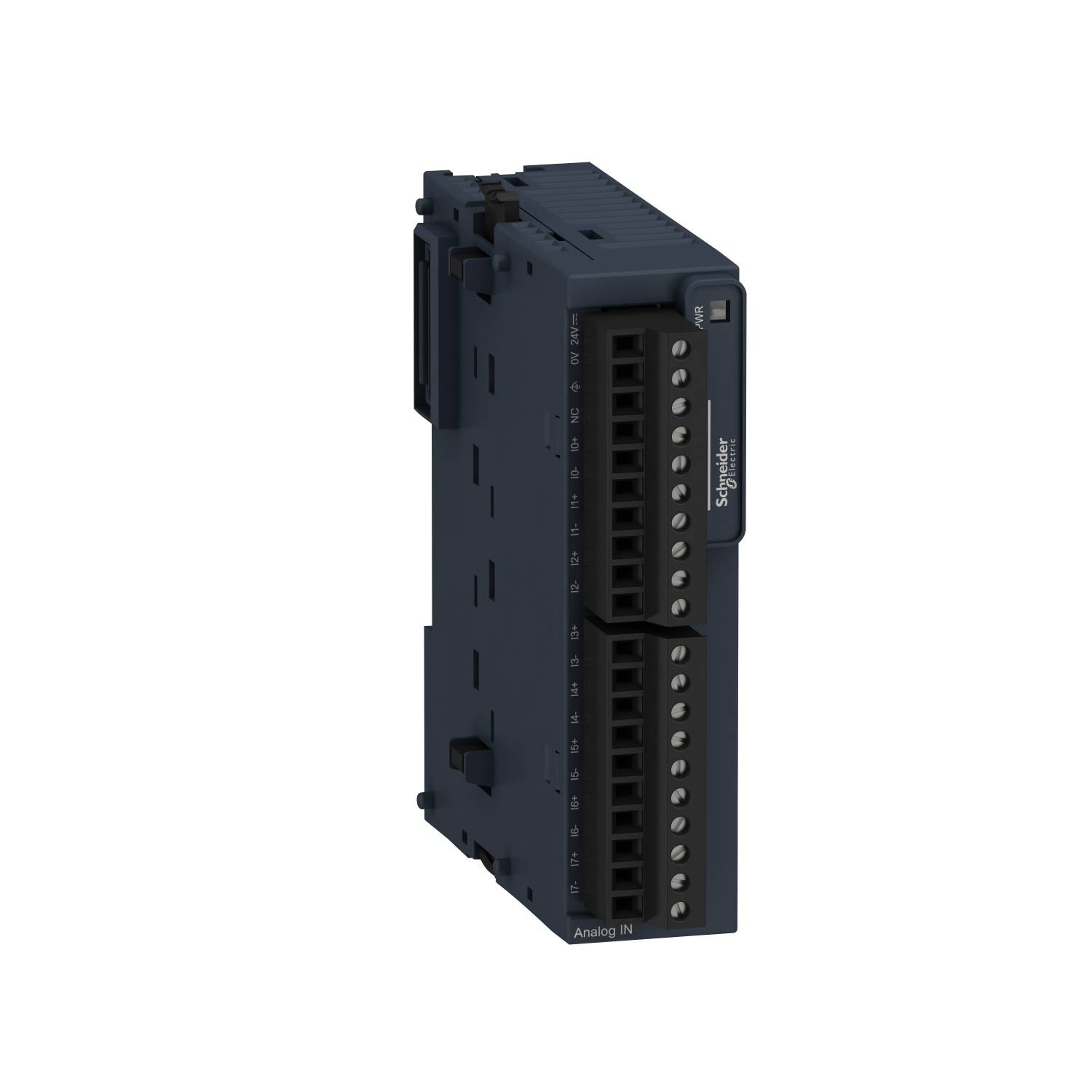

Analog ingångsmodul Modicon TM3. För utökning av Modicon M221, M241, M251 och M262 SPS-kontroller med i/O-kanaler. Kompatibel med tredjeparts-kontroller med Modicon TM3 busskopplare. Totalt 8 analoga ingångar (-10V till +10V/0V till 10V/0mA till 20mA/4mA till 20mA) med 12 bitars upplösning. Konfigurering och konfiguration med programvaran EcoStruxure Machine Expert eller fristående konfigurator (nedladdning över www.se.com). Anslutning via avtagbara skruvklämlister med rasteravstånd 3,81 mm. Omgivningstemperatur vid drift -10°C till +55°C. Montering på 35 mm din-skena eller direkt på instrumentpanel med hållare som tillval. Certifiering enligt CE, cULus/CSA, EAC, RCM, cULus Hazardous location.
Analog ingångsmodul Modicon TM3. För utökning av Modicon M221, M241, M251 och M262 SPS-kontroller med i/O-kanaler. Kompatibel med tredjeparts-kontroller med Modicon TM3 busskopplare. Totalt 8 analoga ingångar (-10V till +10V/0V till 10V/0mA till 20mA/4mA till 20mA) med 12 bitars upplösning. Konfigurering och konfiguration med programvaran EcoStruxure Machine Expert eller fristående konfigurator (nedladdning över www.se.com). Anslutning via avtagbara skruvklämlister med rasteravstånd 3,81 mm. Omgivningstemperatur vid drift -10°C till +55°C. Montering på 35 mm din-skena eller direkt på instrumentpanel med hållare som tillval. Certifiering enligt CE, cULus/CSA, EAC, RCM, cULus Hazardous location.
- Typ av produkt
- Expansionsmodul
- Typ
- TM3AI8
- Tillverkarnr.
- TM3AI8
- Width
- 23.6
- Height
- 90
- Depth
- 70
- Suitable for safety functions
- FALSE
- Number of analogue inputs
- 8
- Number of analogue outputs
- 0
- Input, current
- TRUE
- Input, voltage
- TRUE
- Input, resistor
- FALSE
- Input, resistance thermometer
- FALSE
- Input, thermocouple
- FALSE
- Input signal, configurable
- FALSE
- Output, current
- FALSE
- Output, voltage
- FALSE
- Output signal configurable
- FALSE
- Resolution of the analogue inputs
- 12
- Resolution of the analogue outputs
- 12
- Type of electric connection
- Screw connection
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Appendant operation agent (Ex ia)
- FALSE
- Appendant operation agent (Ex ib)
- FALSE
- Performance level according to EN ISO 13849-1
- None
- Analogue inputs configurable
- FALSE
- Analogue outputs configurable
- FALSE
- SIL according to IEC 61508
- None
