Beskrivning

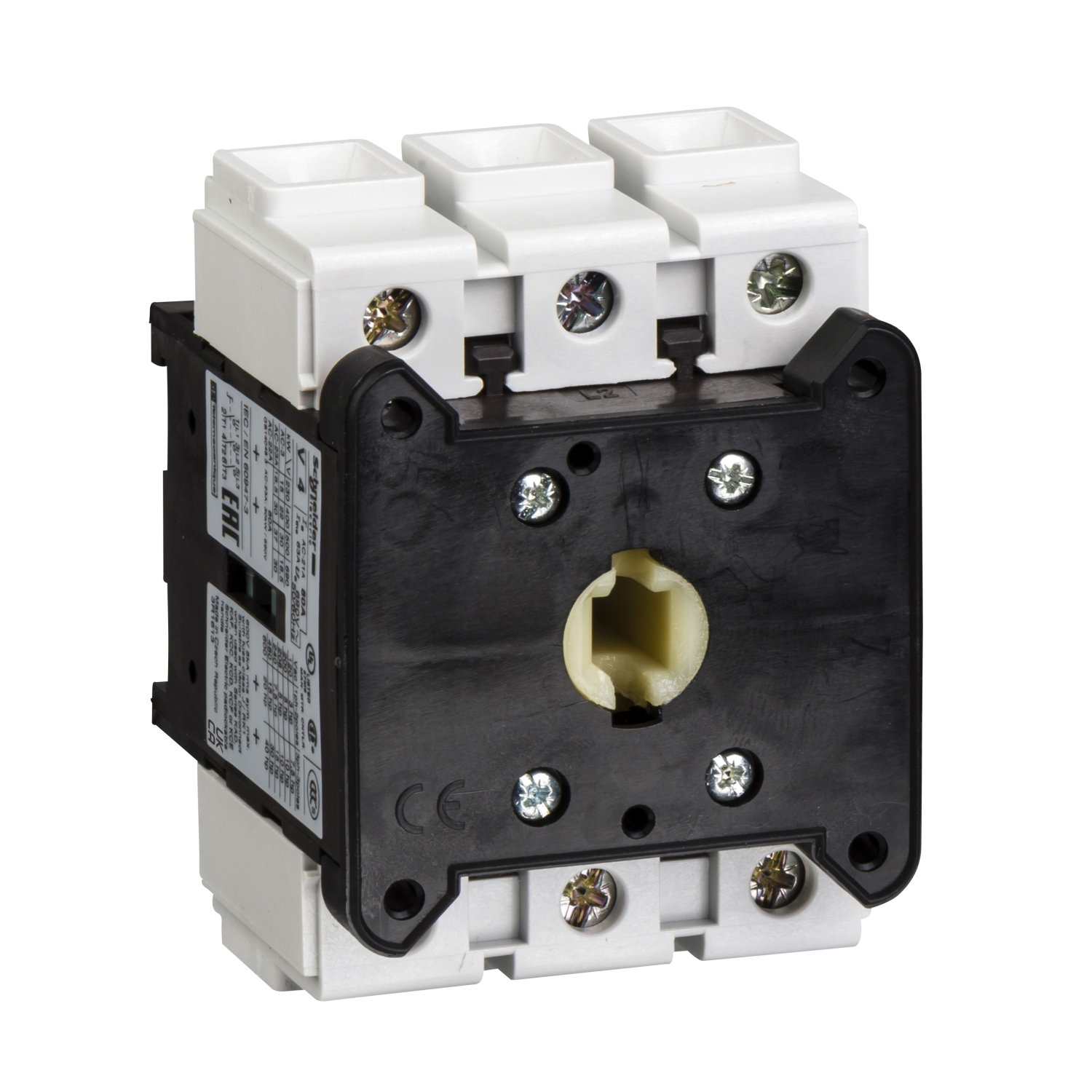

Strömbrytarblock för montering i tomt hölje. Lastfrånskiljare, grundenhet, 3P, 63A. Baugroesse_A 50 A.

Strömbrytarblock för montering i tomt hölje. Lastfrånskiljare, grundenhet, 3P, 63A. Baugroesse_A 50 A.

Typ av produkt

Lastfrånskiljare

Innehåll

1

Typ

V3

Rated operation power at AC-3, 400 V

18.5

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Rated permanent current Iu

63

Number of poles

3

Conditioned rated short-circuit current Iq

10

Degree of protection (IP), front side

IP20

Number of auxiliary contacts as change-over contact

0

Number of switches

1

Interlockable

FALSE

Motor drive integrated

FALSE

Type of electrical connection of main circuit

Screw connection

Version as emergency stop installation

FALSE

Version as main switch

FALSE

Version as safety switch

FALSE

Version as maintenance-/service switch

FALSE

Rated operation power at AC-23, 400 V

15

Rated short-time withstand current lcw

0.756

Suitable for floor mounting

FALSE

Suitable for front mounting 4-hole

TRUE

Suitable for front mounting centre

TRUE

Suitable for distribution board installation

FALSE

Suitable for intermediate mounting

FALSE

Max. rated operation voltage Ue AC

690

Motor drive optional

FALSE

Voltage release optional

FALSE

Device construction

Built-in device fixed built-in technique

Rated permanent current at AC-21, 400 V

63

Version as reversing switch

FALSE

Rated permanent current at AC-23, 400 V

41.5
