Beskrivning

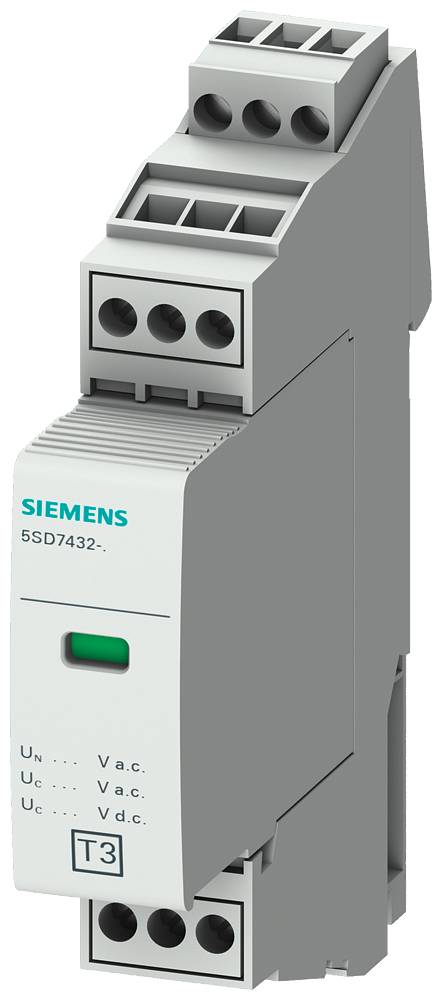

- Typ av produkt
- Kombiavledare
- Tillverkarnr.
- 5SD74326
- RoHS-godkänd
- Ja
- Innehåll
- 1
- With remote signalling contact
- TRUE
- Number of conductors (without earthing)
- 1
- Construction size
- 1 modular spacing
- Max. continuous voltage AC
- 150
- Nominal voltage AC
- 120
- Category type 2
- FALSE
- Voltage protection level L-N
- 0.75
- Signalling at the device
- None
- Max. continuous voltage DC
- 150
- Degree of protection (IP)
- IP20
- Max. PV-voltage
- 150
- Voltage protection level N-PE
- 0.85
- Integrated backup fuse
- FALSE
- Max. conductor cross section solid (solid, stranded)
- 4
- Max. conductor cross section flexible (fine-strand)
- 2.5
- System configuration DC
- FALSE
- System configuration IT
- FALSE
- System configuration TN
- FALSE
- System configuration TN-C
- FALSE
- System configuration TN-S
- FALSE
- System configuration TT
- FALSE
- System configuration other
- FALSE
- System configuration TN-C-S
- FALSE
- Short-circuit breaking capacity (Isccr)
- 10
- Max. overcurrent protection device, series connection (fuse)
- 25
