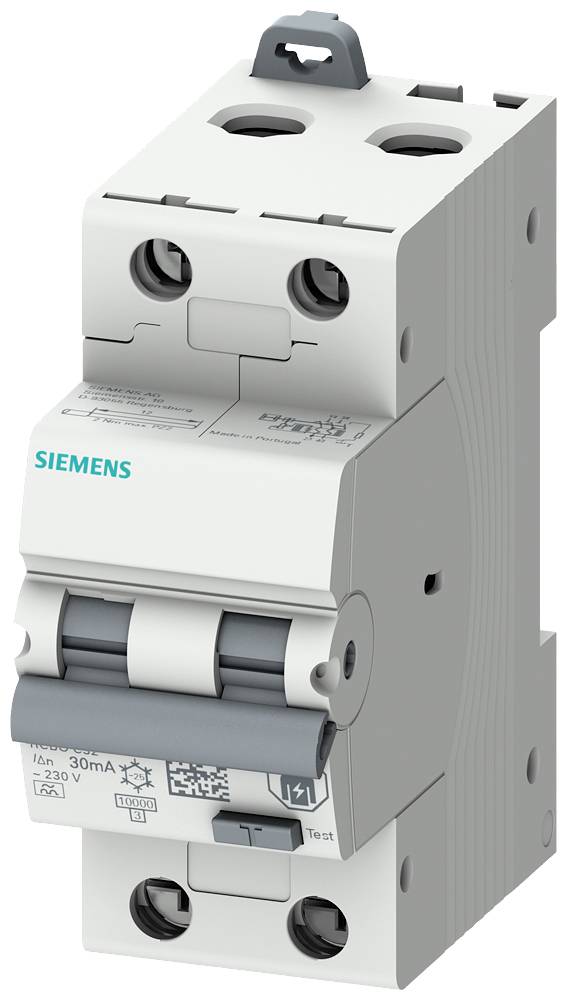

Siemens 5SU13246FR16 Jordfelsbrytare/Säkerhetsbrytare

Siemens 5SU13246FR16 Jordfelsbrytare/Säkerhetsbrytare

Det ursprungliga priset var: kr1,490.00.Det nuvarande priset är: kr298.00.

Typ av produkt Jordfelsbrytare/Säkerhetsbrytare RoHS-godkänd Ja Innehåll 1 Voltage type AC Built-in depth 70 Rated current 16 Rated voltage 230 Release characteristic B Rated insulation voltage Ui 500 Rated fault current 0.03 Leakage current type A Surge current capacity 3 Current limiting class 3 Overvoltage category 2 Pollution degree 3 Width in number of modular spacings 2 Degree of protection (IP) IP20 Number of protected poles 2 Concurrently switching neutral conductor TRUE Rated short-circuit breaking capacity according to IEC 60947-2 15 Number of poles (total) 2 Rated impulse withstand voltage Uimp 4 Rated short-circuit breaking capacity Icn according to EN…

Kassa
SKU: FMQFAAU1890419884650
Category:

Beskrivning

Typ av produkt
Jordfelsbrytare/Säkerhetsbrytare
RoHS-godkänd
Ja
Innehåll
1
Voltage type
AC
Built-in depth
70
Rated current
16
Rated voltage
230
Release characteristic
B
Rated insulation voltage Ui
500
Rated fault current
0.03
Leakage current type
A
Surge current capacity
3
Current limiting class
3
Overvoltage category
2
Pollution degree
3
Width in number of modular spacings
2
Degree of protection (IP)
IP20
Number of protected poles
2
Concurrently switching neutral conductor
TRUE
Rated short-circuit breaking capacity according to IEC 60947-2
15
Number of poles (total)
2
Rated impulse withstand voltage Uimp
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
10
Disconnection characteristic
Other
Rated short-circuit breaking capacity according to EN 61009
10
