Beskrivning

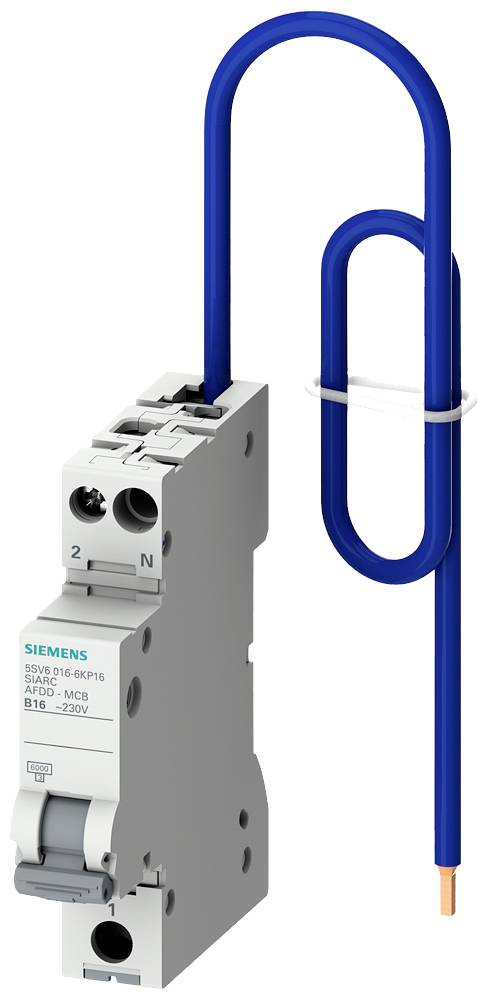

AFDD-MCB-combination 230V, 6kA, 1+N, B, 16A compact (1MW) pigtail SENTRON 5SV6 .The extensive accessories, such as the auxiliary switch, allow the functions to be extended in a wide variety of ways.

AFDD-MCB-combination 230V, 6kA, 1+N, B, 16A compact (1MW) pigtail SENTRON 5SV6 .The extensive accessories, such as the auxiliary switch, allow the functions to be extended in a wide variety of ways.

RoHS-godkänd

Ja

Innehåll

1

Voltage type

AC

Built-in depth

70

Rated current

16

Rated voltage

230

Release characteristic

B

Number of poles

2

Current limiting class

3

Pollution degree

2

Width in number of modular spacings

1

Degree of protection (IP)

IP20

Rated short-circuit breaking capacity according to EN 60898

6

Rated short-circuit breaking capacity according to IEC 60947-2

6

Rated switch current auxiliary device

6000

Rated voltage auxiliary device

195

Control voltage type auxiliary equipment

AC

Additional equipment attached at delivery

Fire protection switch

Typ av produkt

Ljusbågsskydd
