Beskrivning

Typ

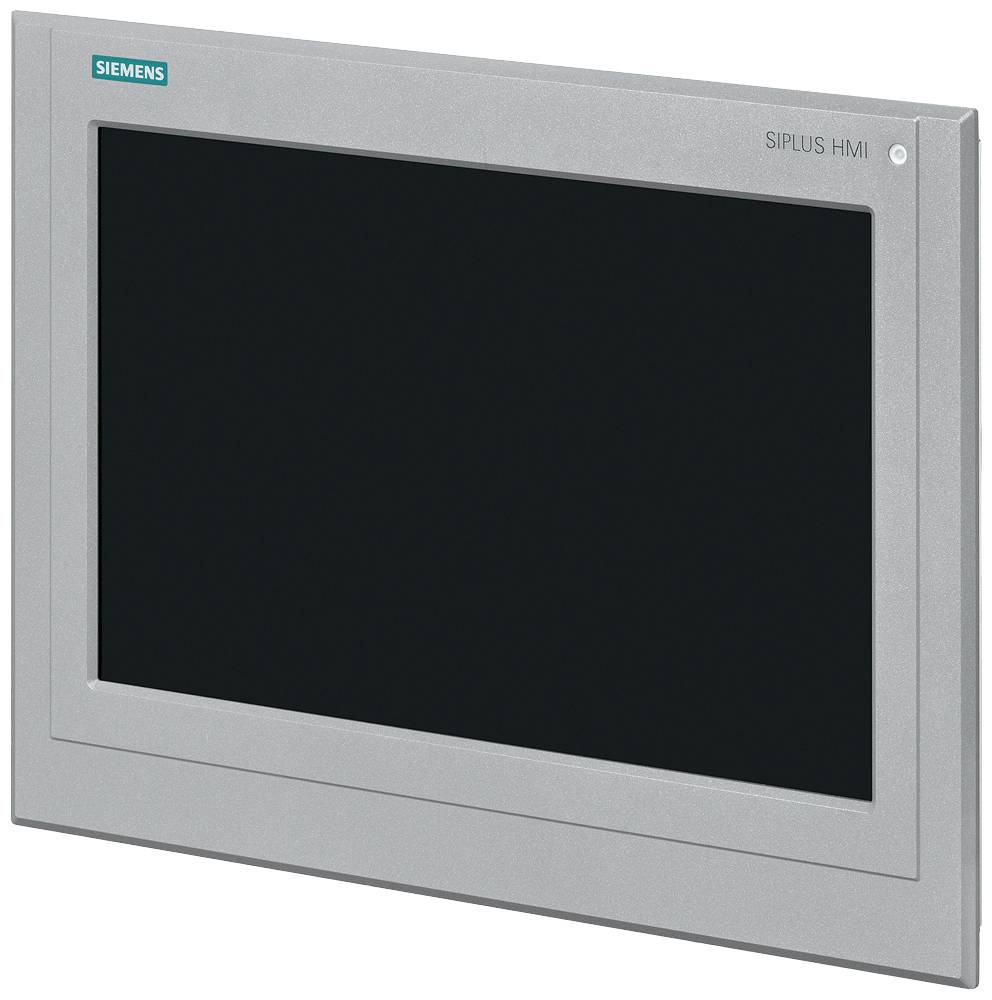

6AG2124-0QC13-1AX0

Tillverkarnr.

6AG21240QC131AX0

Built-in depth

77

Suitable for safety functions

FALSE

Screen diagonal

15.4

Voltage type (supply voltage)

DC

Supporting protocol for LON

FALSE

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

0

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces serial TTY

0

Number of HW-interfaces USB

2

Number of HW-interfaces parallel

0

Number of HW-interfaces other

1

Supporting protocol for TCP/IP

TRUE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

TRUE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for Modbus

TRUE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for SUCONET

FALSE

Supporting protocol for other bus systems

TRUE

Colour display

TRUE

Number of colours of the display

16777216

Number of pixels, horizontal

1280

Number of pixels, vertical

800

Number of function buttons, programmable

0

With numeric keyboard

TRUE

With alpha numeric keyboard

TRUE

Usable project memory/user memory

12000

With message indication

TRUE

With message system (incl. buffer and confirmation)

TRUE

Process value representation (output) possible

TRUE

Process default value (input) possible

TRUE

With recipes

TRUE

Number of password levels

50

With printer output

TRUE

Number of online languages

32

Additional software components, loadable

TRUE

Degree of protection (IP), front side

IP66

With SW interfaces

FALSE

Width of the front

415

Height of the front

310

Suitable for rail mounting

FALSE

Supporting protocol for SERCOS

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Number of interfaces PROFINET

2

Number of HW-interfaces wireless

0

Wall mounting/direct mounting

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

IO link master

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

TRUE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for SafetyBUS p

FALSE

Type of display

TFT

Number of grey-scales/blue-scales of display

0

Radio standard GPRS

FALSE

Radio standard GSM

FALSE

Mobile communications standard 3G (UMTS)

FALSE

Number of buttons with LED

0

Number of system buttons

0
