Beskrivning

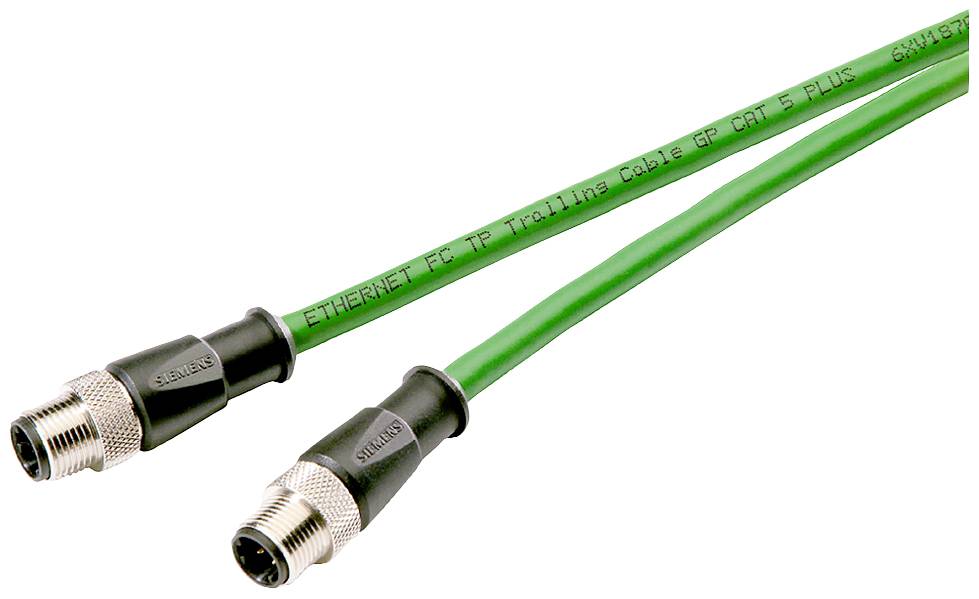

Industrial Ethernet connecting Cable M12-180/M12-180, pre-assembled IE FC Trailing cable GP, with 2 M12 plugs (D-coded) length 15.0 m. For connecting Industrial Ethernet stations with degree of protection 65/67, with transfer rates of 10/100 Mbps. For use in trailing cables, e.g. in the case of continuously moving machine parts. Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).Time-saving and fault-free connection of terminal stations by means of pre-assembled AWG22 connecting cables. Network immune to interference due to double-shielded cables and integrated grounding concept. Reliable shield contact and strain relief are integrated. Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC11801 and EN50173.

Industrial Ethernet connecting Cable M12-180/M12-180, pre-assembled IE FC Trailing cable GP, with 2 M12 plugs (D-coded) length 15.0 m. For connecting Industrial Ethernet stations with degree of protection 65/67, with transfer rates of 10/100 Mbps. For use in trailing cables, e.g. in the case of continuously moving machine parts. Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).Time-saving and fault-free connection of terminal stations by means of pre-assembled AWG22 connecting cables. Network immune to interference due to double-shielded cables and integrated grounding concept. Reliable shield contact and strain relief are integrated. Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC11801 and EN50173.

Typ

6XV1870-8AN15

Tillverkarfärg

Grön

Tillverkarnr.

6XV18708AN15

Innehåll

1

RoHS-godkänd

Ja

Material core insulation

Other

Core identification

Colour

Cable type

SF/FTP

Flame retardant

No

Stranding element

Quad

Colour outer sheath

Green

Category

5E

Diameter conductor

0.75

Screen over stranding element

None

Screen over stranding

Foil + braiding

Material outer sheath

Polyvinyl chloride (PVC)

Permitted cable outer temperature during assembling/handling

-10-75

Permitted cable outer temperature after assembling without vibration

-25-75

Number of stranding elements

2

Number of cores

4

Suitable for underground installation

FALSE

Stranding

Bundle

Outer diameter approximate

6.5

NVP value

66

Conductor surface

Bare

Reaction-to-fire according to EN 13501-6: Class

None

Min. permitted bending radius, moving application with forced guidance

49

Min. permitted bending radius, moving application/free movement

49

Min. permitted bending radius, stationary application/permanent installation

49

Specification material outer sheath

Other
