Beskrivning

Typ av produkt

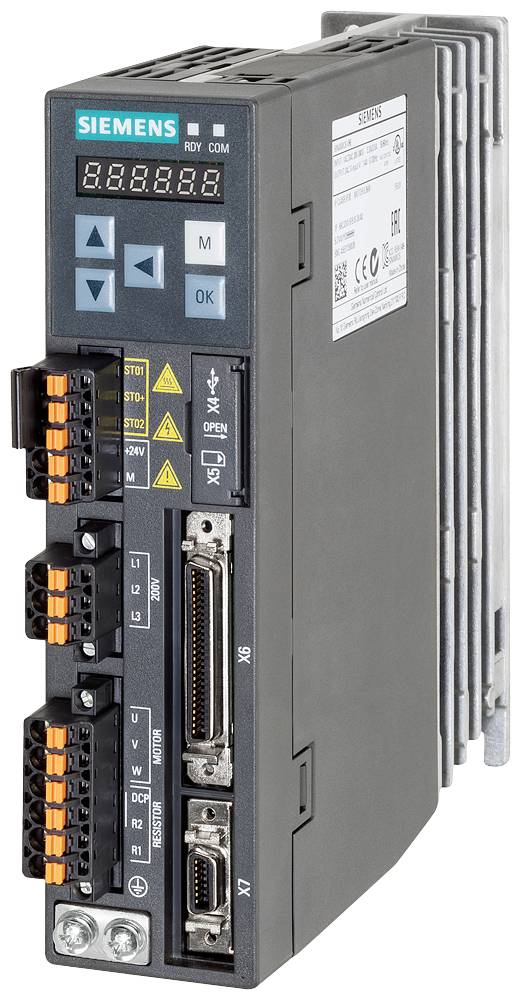

Frekvensomvandlare

Typ

6SL3210-5FB10-1UF2

Tillverkarnr.

6SL32105FB101UF2

Width

45

Height

170

Depth

170

Number of digital inputs

4

Number of digital outputs

2

Number of analogue inputs

2

Supporting protocol for LON

FALSE

Number of HW-interfaces USB

1

Supporting protocol for TCP/IP

FALSE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for Modbus

FALSE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for SUCONET

FALSE

Supporting protocol for other bus systems

FALSE

Degree of protection (IP)

IP20

With PC connection

TRUE

Supporting protocol for SERCOS

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

4-quadrant operation possible

TRUE

Number of interfaces PROFINET

2

Type of converter

U converter

Number of phases output

3

Number of phases input

1

Integrated breaking resistance

TRUE

Application in industrial area permitted

FALSE

Application in domestic- and commercial area permitted

TRUE

Relative symmetric net voltage tolerance

-15

Relative symmetric net frequency tolerance

-15

Supporting protocol for AS-Interface Safety at Work

FALSE

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

TRUE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for SafetyBUS p

FALSE

Max. output voltage

212

Nominal output current I2N

1.2
