Beskrivning

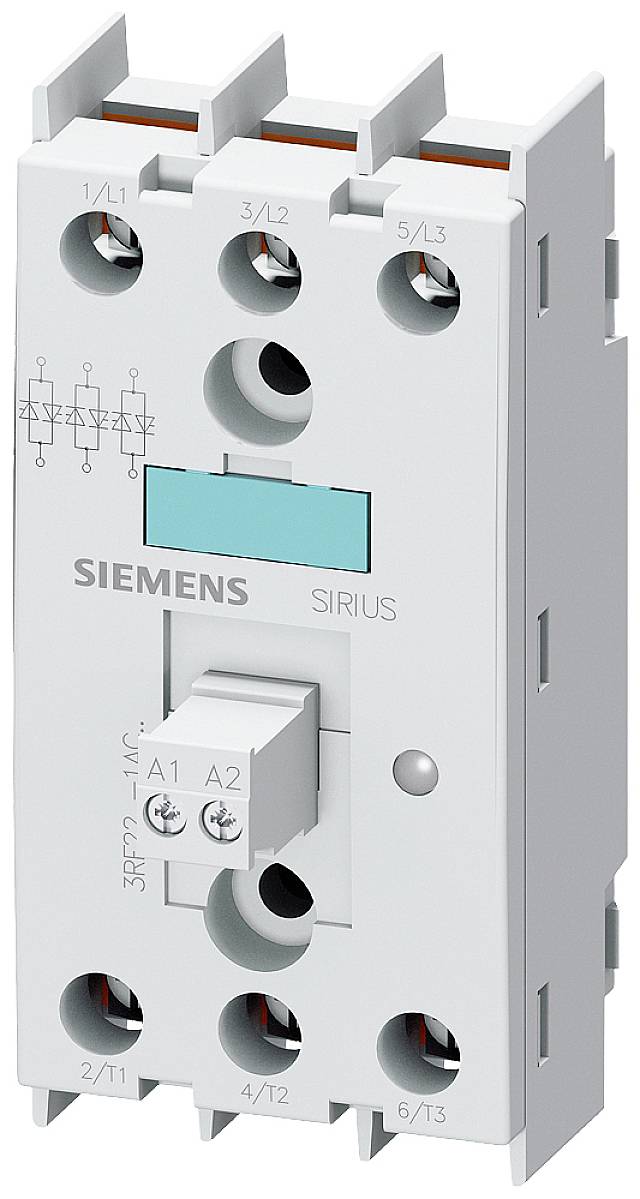

Semiconductor relay, 3-phase 3RF2 30 A / 40 °C 48-600 V / 4-30 V DC 3-phase controlled screw terminal Blocking voltage 1200 V solid-state relay SIRIUS 3RF22 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.Simple, efficient and always up to date – SIRIUS modular system.

kontrollerad 3-fas

Semiconductor relay, 3-phase 3RF2 30 A / 40 °C 48-600 V / 4-30 V DC 3-phase controlled screw terminal Blocking voltage 1200 V solid-state relay SIRIUS 3RF22 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.Simple, efficient and always up to date – SIRIUS modular system.

kontrollerad 3-fas

Typ av produkt

Halvledar-relä

Typ

3RF2230-1AC45

Anslutningstyp

Nollspänning

Anslutning

Skruvklämma

Styrspänning (min.)

4

Styrspänning (max.)

30

Styrspänningsområde

4 – 30 V/DC

Styrström (max.)

30

Spänningsström (max.)

300

Kopplingsspänning (min.)

48

Växelspänning (max.)

600

Belastningsström (max.)

30

Kontakttyp

3 NO

Min. temperatur

-25

Max. temperatur

+60

Skyddsklass

IP20

Bredd

45

Höjd

95

Djup

47

Vikt

145

RoHS-godkänd

Ja

Innehåll

1

Number of phases

3

Suitable for distribution board

TRUE

Rated control supply voltage DC

4-30

Rated operation current Ie at AC-1

30

Voltage type for actuating

DC

Rated operation current Ie at AC-51

30
